Custom Metal Siding
Exterior Elements offers installed steel wall paneling from AEP Span for all your commercial or residential applications. AEP Span is continuely adding value to their products with ongoing upgrades, resulting in higher performing panels with lower project costs. All profiles have a standard minimum substrate of 24 gauge steel and come with the DuraTech®5000 commercial grade paint system backed by a 30 year warranty for color integrity.

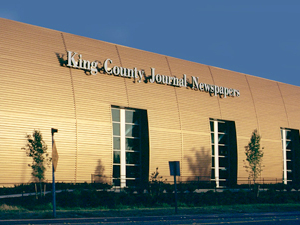

Box Rib™ Wall
>> Learn MoreBox Rib is a through-fastened metal panel with 36" net coverage and
is predominantly used for commercial, architectural and industrial wall applications. >> View Color Options
is predominantly used for commercial, architectural and industrial wall applications. >> View Color Options
- Wider coverage panels
- Superior load and span capacities
- Economical Trim Packages
- Can be crimp-curved for radiused applications
- 24 through 18 gauge panels available
PROFILE

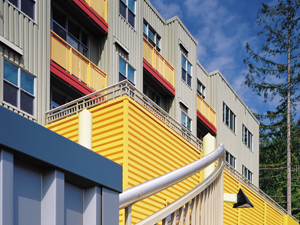

Reversed Box Rib™
>> Learn MoreReversed Box Rib is a through-fastened metal panel with full 36" net coverage and is ideal for commercial, industrial, and architectural roof and wall applications.
>> View Color Options
- Wider coverage panels
- Superior load and span capacities
- Economical Trim Packages
- Can be crimp-curved for radiused applications
- 24 through 18 gauge panels available
PROFILE

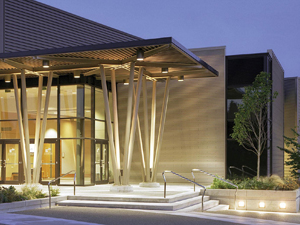

Mini-V-Beam™
>> Learn MoreMini-V-Beam is a through-fastened metal panel with 32" net coverage. This panel is predominantly used in industrial roof and wall applications.
>> View Color Options
- Superior load and span capacities
- Economical Trim Packages
- ICC Diaphragm Shear Values when used with TEK screws
- 24 and 22 gauge panels available
PROFILE

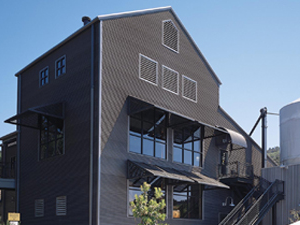

Nu-Wave® Corrugated
>> Learn MoreNu-Wave® Corrugated is a through-fastened metal panel with 7/8" deep corrugations. The panel measures 36" out-to-out, with a 32" net coverage for roof applications and a 34 2/3" net coverage for wall applications.
>> View Color Options
- Deep corrugations provide bold aesthetic shadow effects
- Some gauges offered factory curved to save time and money
- Economical Trim Packages
- Longer spanning and greater allowable loads
- 24 and 22 gauge panels available
PROFILE
